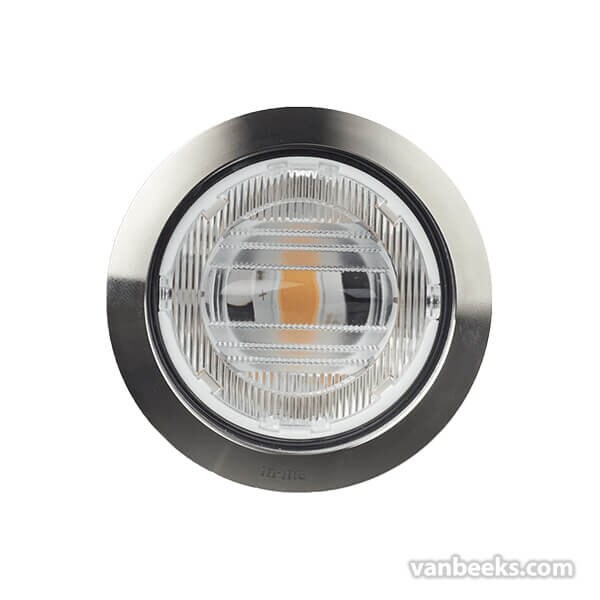

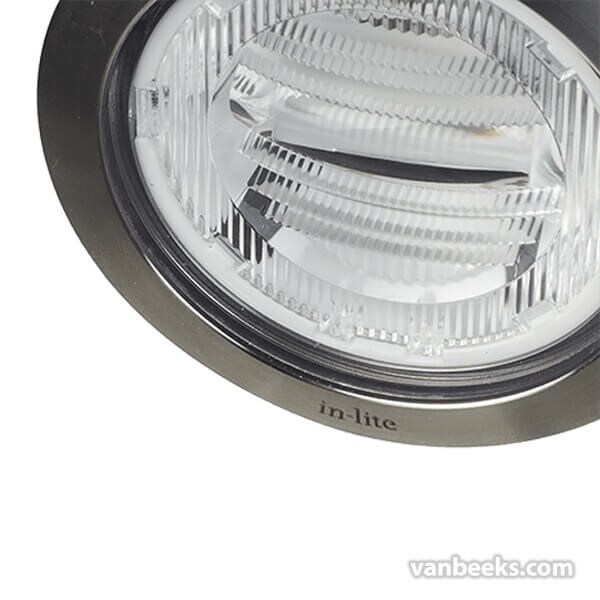

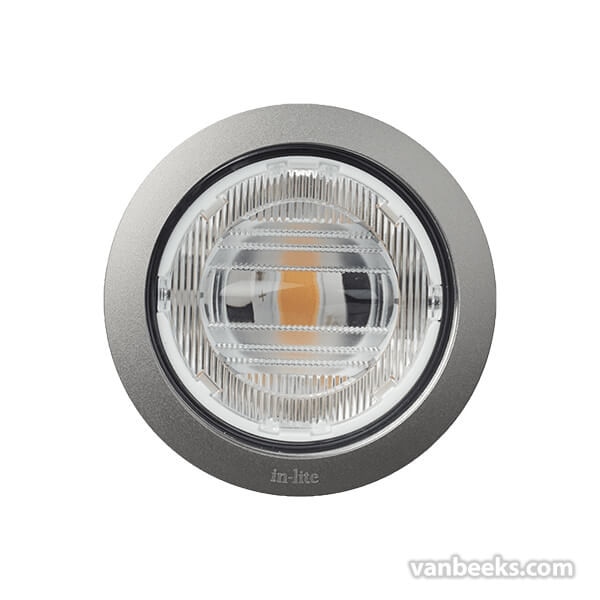

in-lite Big Flux Asymmetric 12v
in-lite Big Flux Asymmetric 12v - Detailed Description

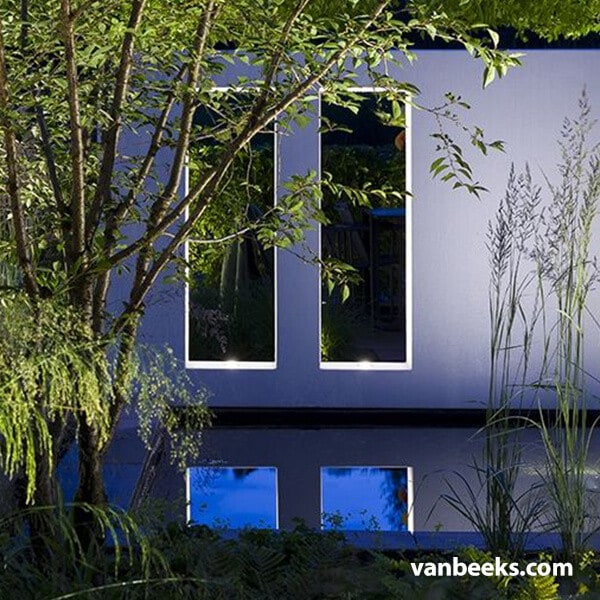

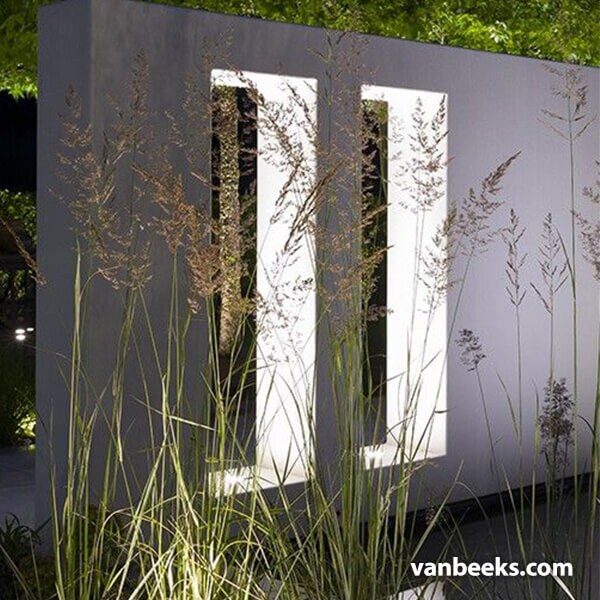

The in-lite Big Flux Asymmetric 12v has been specially developed to create unique lighting effects for pergolas, wide recesses or passageways.

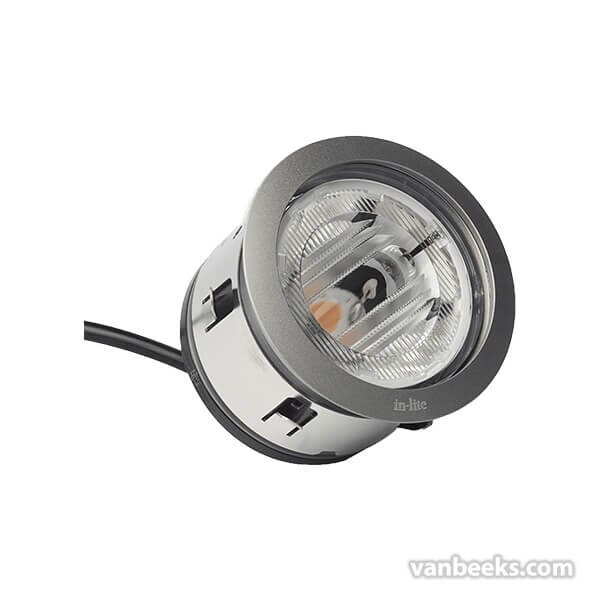

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

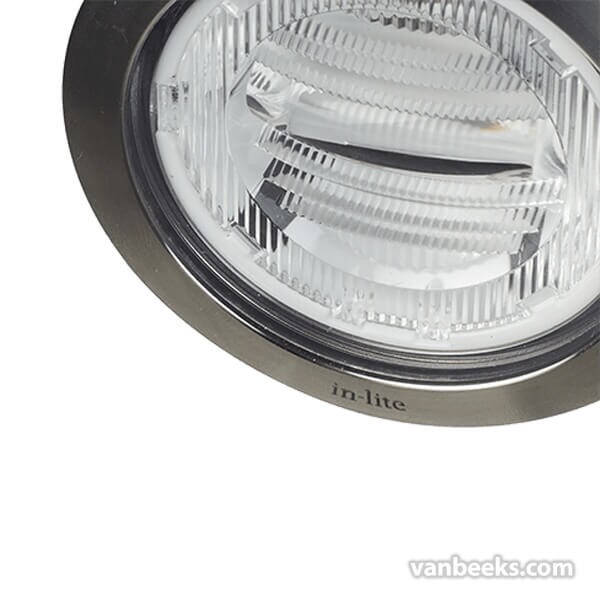

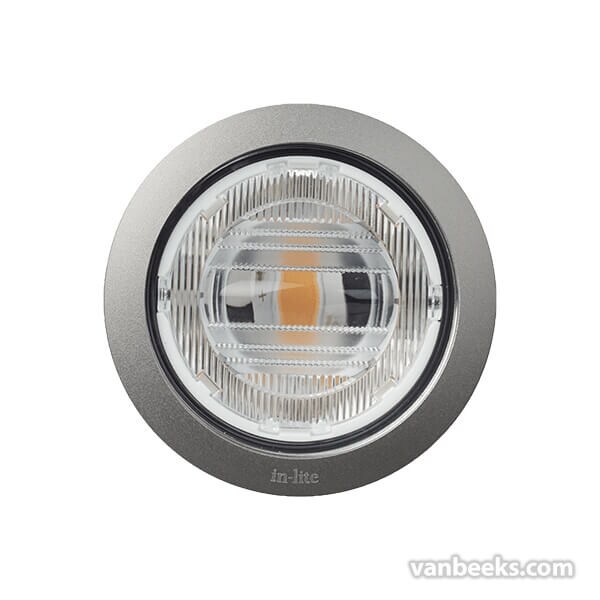

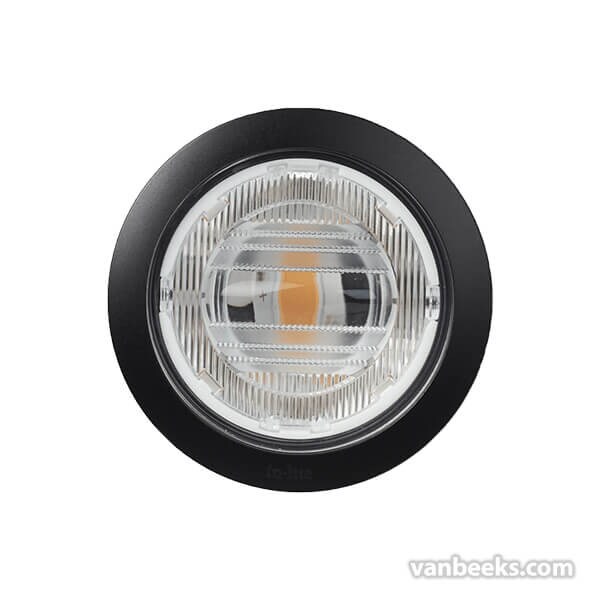

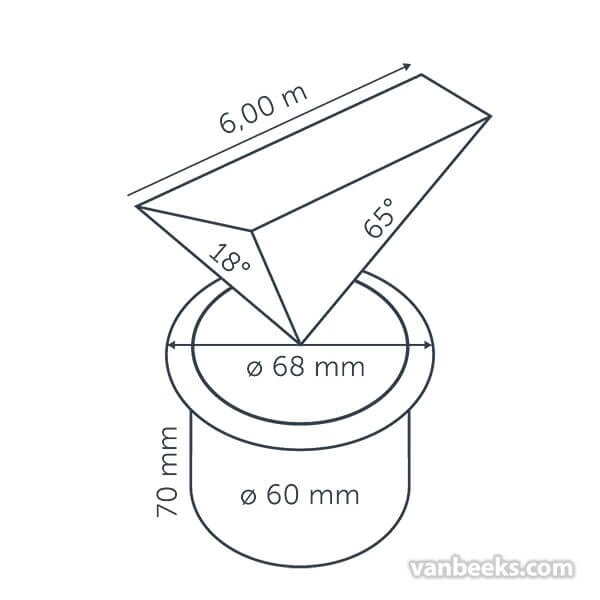

The in-lite Big Flux Asymmetric 12v produces two different lighting effects with its asymmetric lens. One of the lighting effects is like a wide fan, which has a light angle of 65 degrees and light distribution of 6 meters. However, when the fixture is turned 90 degrees, a narrow strip is created which has a light angle of 18 degrees and light distribution of 6 meters high. This means the fixture creates unique lighting effects for pergolas, wide recesses or passageways. The in-lite Big Flux Asymmetric 12v can also be perfectly combined with the SPIKE accessory. This ground pin makes it easy to install the in-lite Big Flux Asymmetric 12v in loose surfaces like soil, gravel or lawn.

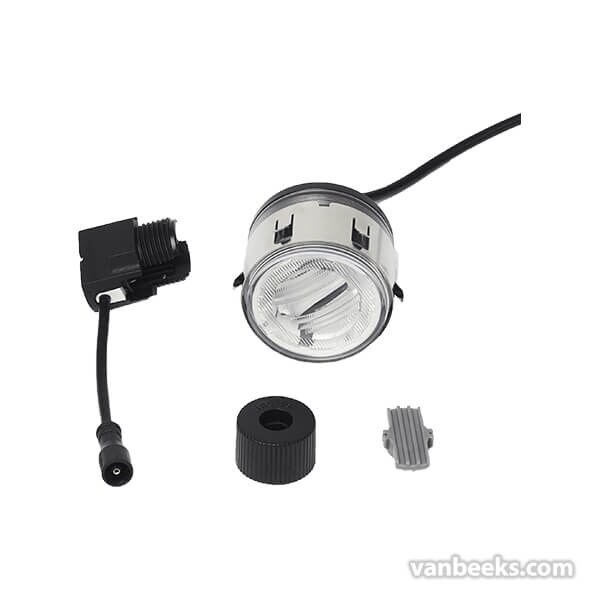

This product is multi-component and the components are packaged separately.
Important: the BIG FLUX ASYMMETRIC can be installed in the BOX-100 accessory. The BIG FLUX NARROW is suitable for use in accessory BOX 1.
- Produces a wide strip of light
- Designed for illuminating walls and pergolas
- Drive-over

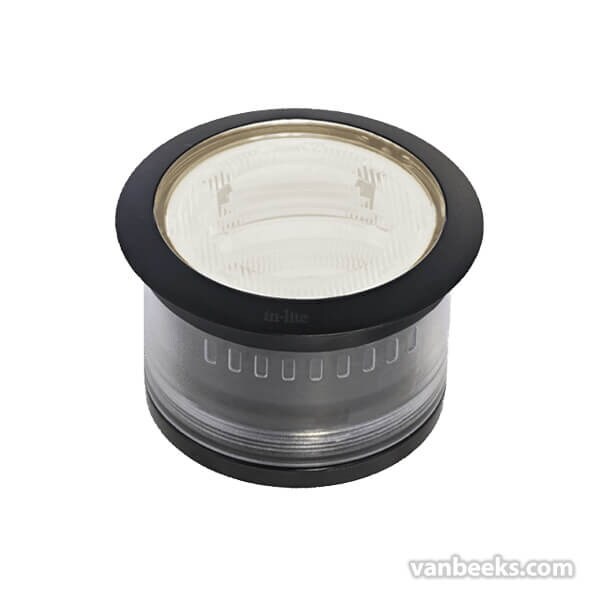

- Outdoor ground spotlight - Ø 60 mm
Contact Van Beek’s Landscape Supply today to discover why we are recognized as the Greater Toronto Area’s (GTA) leading supplier of in-lite Big Flux Asymmetric 12v.
in-lite Big Flux Asymmetric 12v
| Height mm | 64 |
| Height inch | 2.52 |
| Mounting depth mm | 70 |
| Mounting depth inch | 2.76 |
| Diameter Inch | 2.68 |
| Diameter mm | 68 |
| Housing | Polycarbonate |
| Ring/Cover plate | Aluminum |
| Voltage | 12v |
| Electric potential | 4.2VA |
| Power | 3W |
| Light source | LED |
| Lighting direction | Upwards |
| Lighting reach ft | 19.69 |
| Lighting reach m | 6 |
| Burn time | 25000 |
| Color temperature | 3100 |
| CRI | 93 |
| Net Luminous Flux | 258lm |
| Energy label | F |
| IP-class | 68 |
| Application | Tree, Roof, Hedge, House |
| Processing | Concrete, Grass, Wood |
| Luminous Efficacy | 86lm/W |
| Features | Drive-over |
