BCF1570 Forward Compactor

SKU: 7_3_100019

$2880.00

(0)No Reviews yet

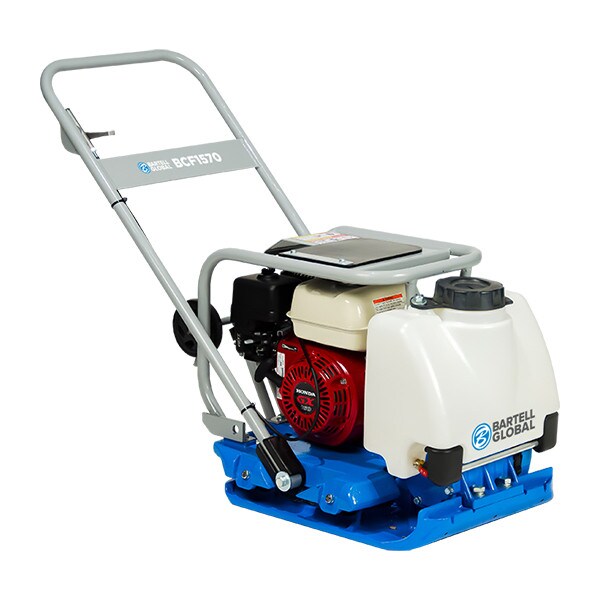

BCF1570 Forward Compactor


The Bartell BCF1570 Forward Compactor is a powerful, reliable solution for a wide range of compaction applications. Designed for durability and ease of use, this hard-hitting machine delivers top-tier performance while keeping maintenance to a minimum. Its built-in water tank allows for use on asphalt and improves dust control on dirt and soil, making it a versatile choice for contractors.

Key Features:
  • Power & Precision: Robust throttle control mounted on the handle ensures safe and convenient operation.
  • Operator Comfort: Anti-vibration handle reduces strain for extended use.

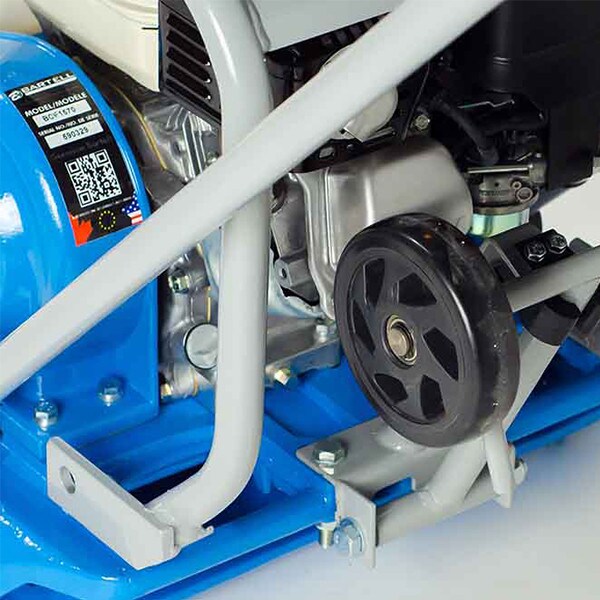

  • Compact & Mobile: A folding handle allows for easy storage, while retractable wheels provide built-in mobility.
  • Safe & Efficient Loading: Integrated lifting bale simplifies transportation.

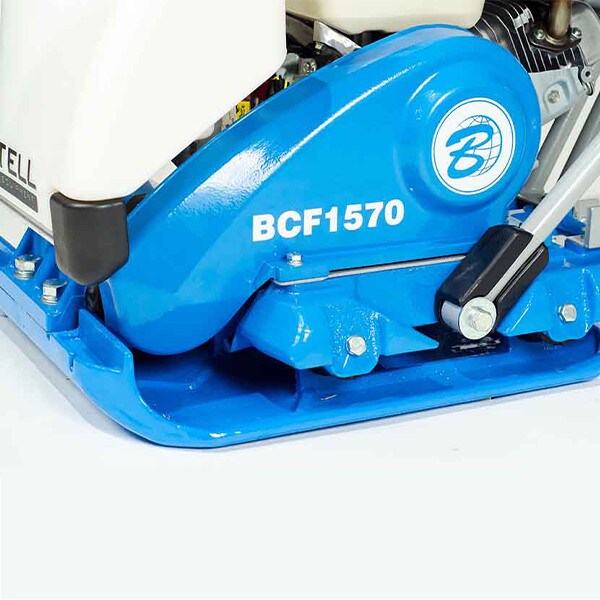

  • Sealed Housing: Protects internal components by keeping out debris and dust.
  • Smart Design: Straight-edge plate reaches into tight spaces, ensuring complete compaction coverage.
  • Versatility: Optional urethane mat prevents scratches and damage on pavers and slabs.

Whether working on asphalt, soil, or interlocking stone, the BCF1570 delivers powerful compaction with user-friendly features built to handle the toughest job site conditions.

Contact Van Beek’s Landscape Supply today to discover why we are recognized as the Greater Toronto Area’s (GTA) leading supplier of BCF1570 Forward Compactor.


SpecificationDetails

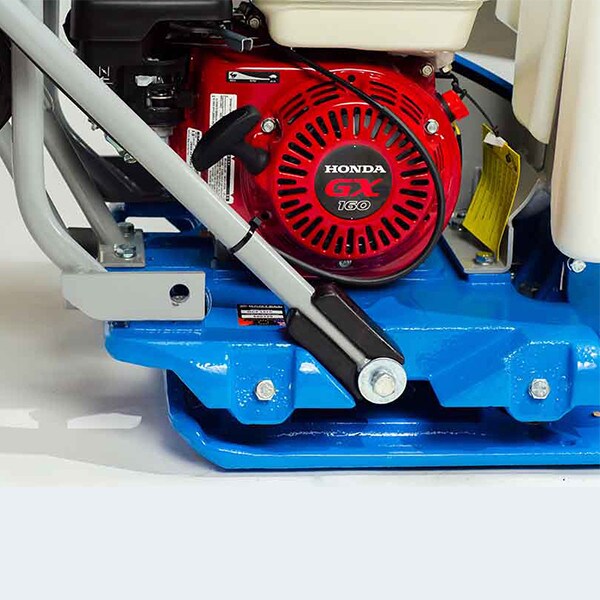

EngineHonda GX160, 4.8hp (3.6kW)
Compaction Force3461 lbf, 15 kN, 1570 kgf
Max Travel Speed82'/min (25m/min)
Length44" (1118mm)
Width20" (508mm)
Height33" (838mm)
Weight217 lbs (98kg)
Plate Size20" x 21" (500mm x 525mm)
