Permacon Tandem Next Concrete Retaining Wall System

Permacon Tandem Next Concrete Retaining Wall Details:

Discover the revolutionary Permacon Tandem Next Wall, a groundbreaking solution in retaining wall systems, available at Van Beek's.

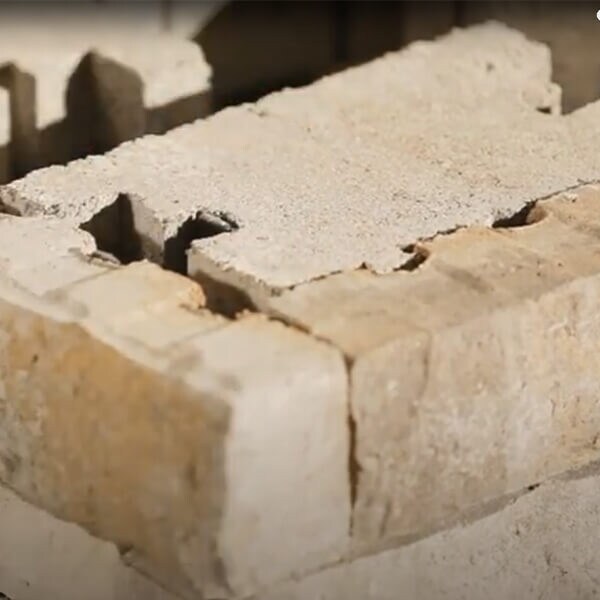

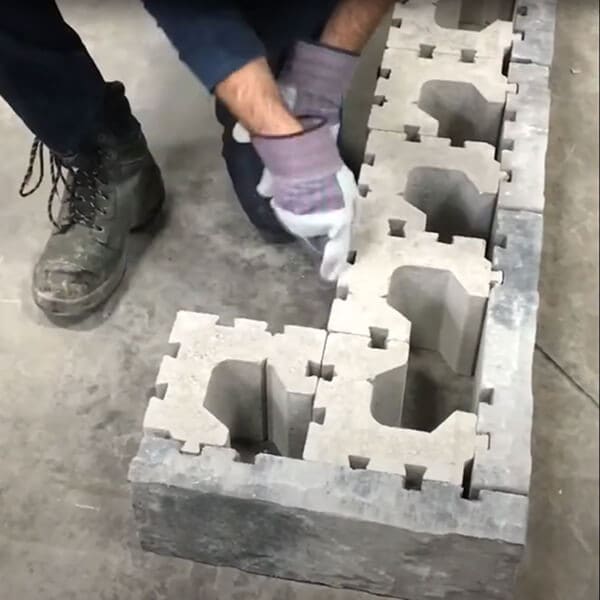

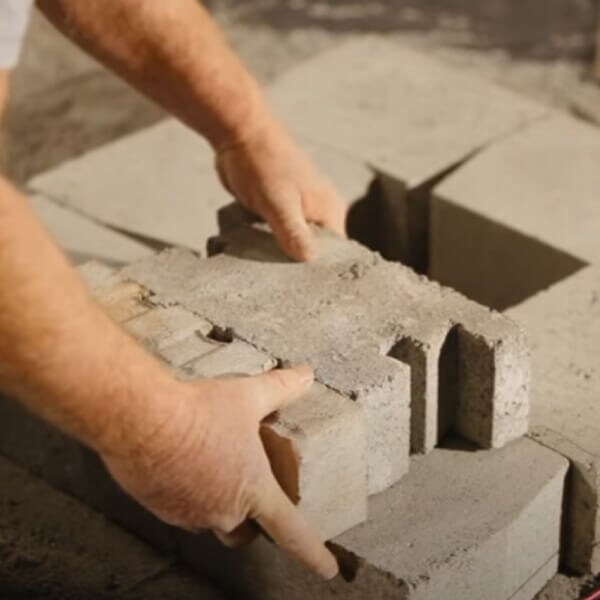

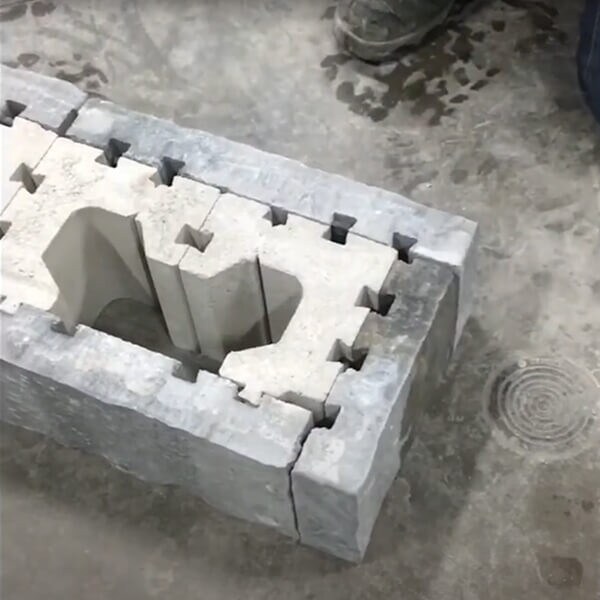

At the core of its innovation is the dovetail joint principle – a sophisticated interlocking mechanism involving a vertical tenon (male side) on each structural unit and corresponding mortises (female side) on the veneer units. This design allows for a seamless, slide-in assembly of the Tandem Next units, ensuring strength and visual harmony.

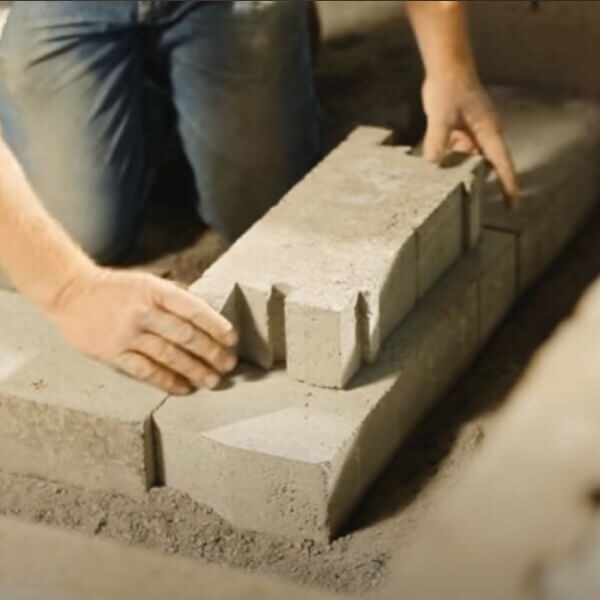

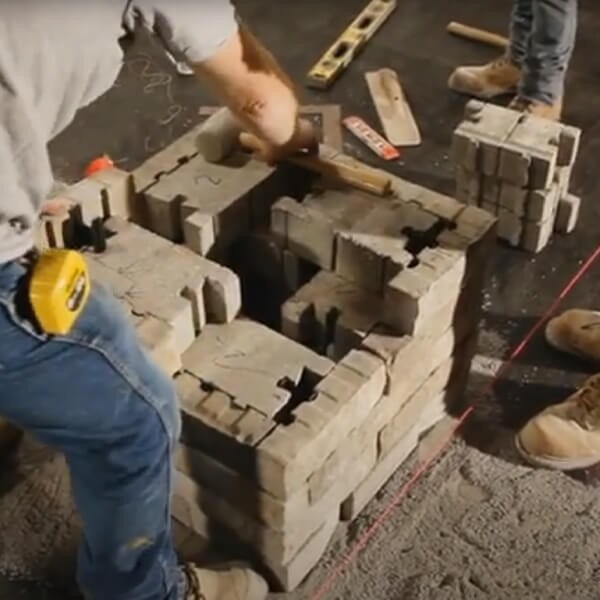

The construction of the Tandem wall begins with the Tandem wall starter unit, designed for easy installation on a granular base foundation. With its bevelled edges, this unit simplifies the creation of curved walls. Its use is highly recommended for laying a uniform foundation, a critical step for achieving ultimate wall stability.

This system allows you to craft sloped, vertical, reinforcing, and double-sided walls. Additionally, it offers the flexibility to construct columns and stairs, making it an ideal choice for a wide range of landscaping projects.

Use Tandem Structural Units with Melville Tandem Wall or Lafitt Tandem Wall Pieces.

Applications: Permacon Tandem Next Wall System is ideal for the following applications:

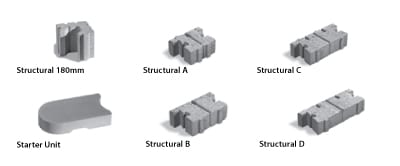

Shape, Sizes and Formats: Permacon Tandem Next Wall System comes in the following sizes and formats:

size	inches	mm	qty per bundle	qty per layer

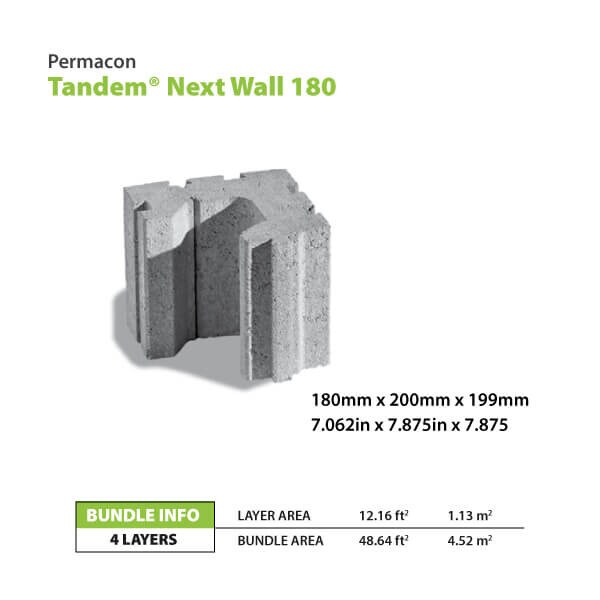

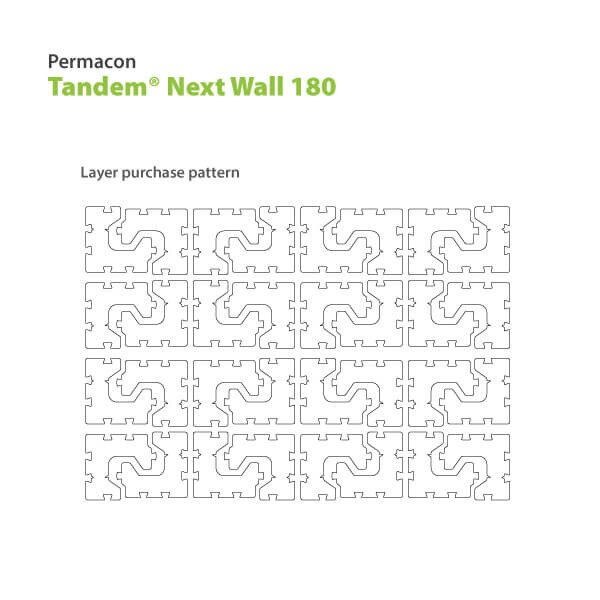

180mm Structural	7.062 x 7.875 x 7.875	180 x 200 x 199	128	32

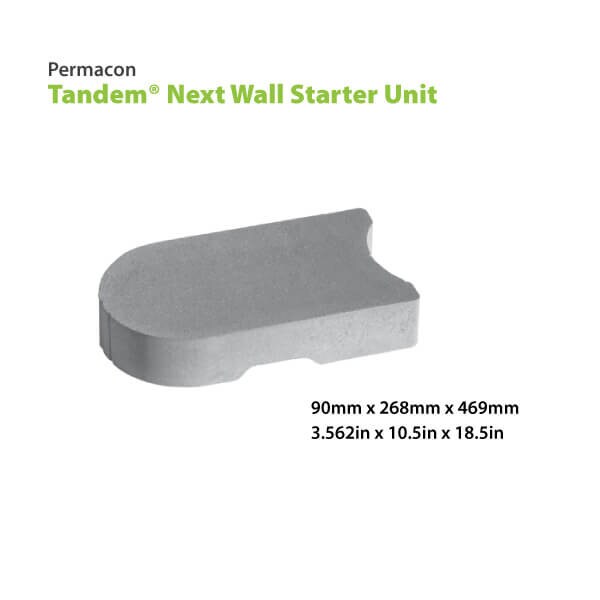

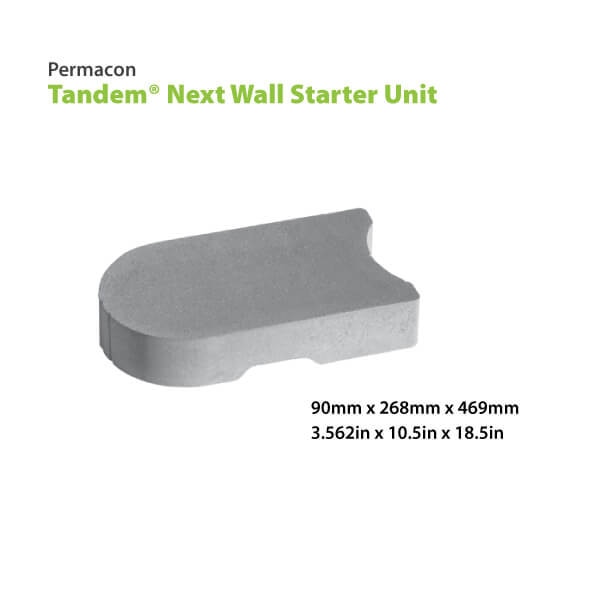

Starter Unit	3.562 x 10.5 x 18.5	90 x 268 x 469	56	8

size	inches	mm	qty per bundle	qty per layer

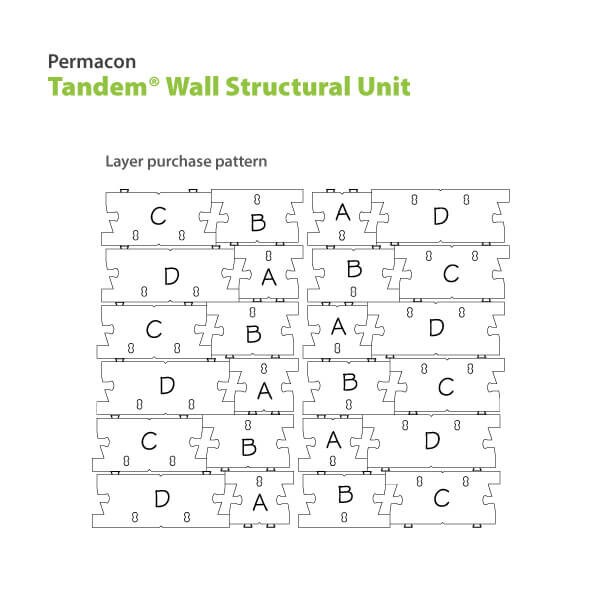

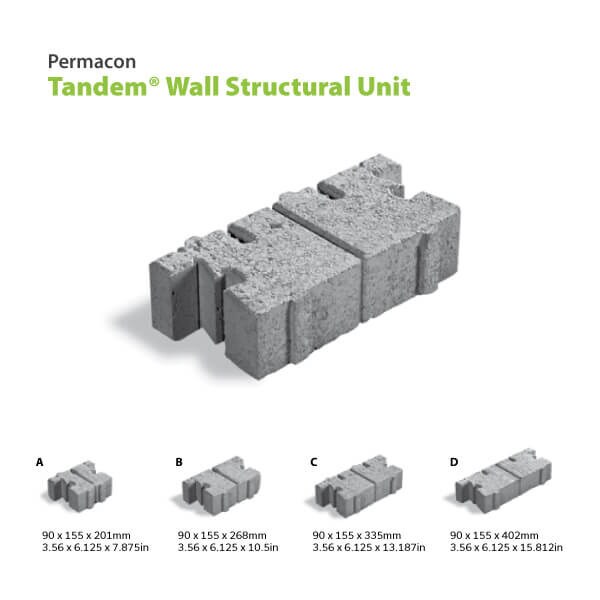

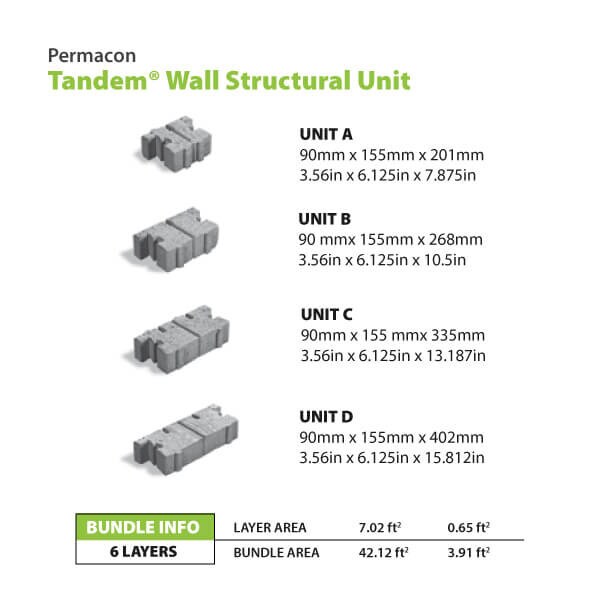

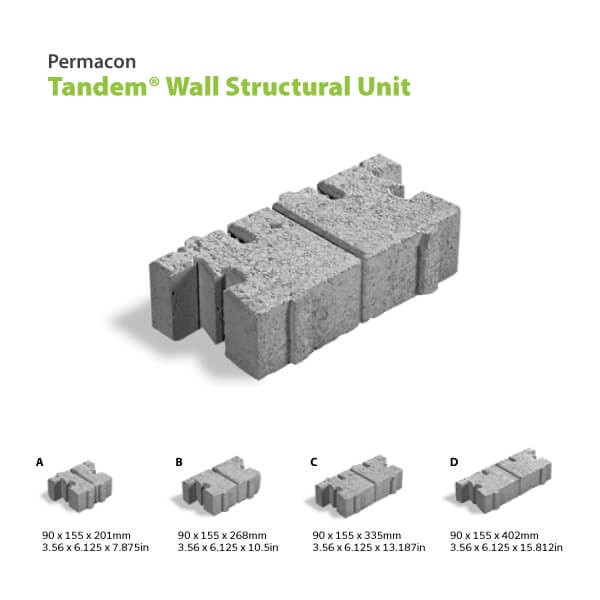

Structural 90mm A	3.56 x 6.125 x 7.875	90 x 155 x 201	36	6
Structural 90mm B	3.56 x 6.125 x 10.5	90 x 155 x 268	36	6
Structural 90mm C	3.56 x 6.125 x 13.187	90 x 155 x 335	36	6
Structural 90mm D	3.56 x 6.125 x 15.812	90 x 155 x 402	36	6

Coverage by bundle :
Tandem Next Wall 180 mm Structural - 48.64 SqFt
Tandem Wall Structural Unit 90 mm - 42.12 SqFt

Weight:
Tandem Next Wall 180 mm Structural - 2903 lbs per bundle
Tandem Wall Structural Unit 90 mm - 2711 lbs per bundle


Contact Van Beek’s Landscape Supply today to discover why we are recognized as the Greater Toronto Area’s (GTA) leading supplier of the Permacon Tandem Next Wall System.
