U-Cara Modular System Base Module
Details

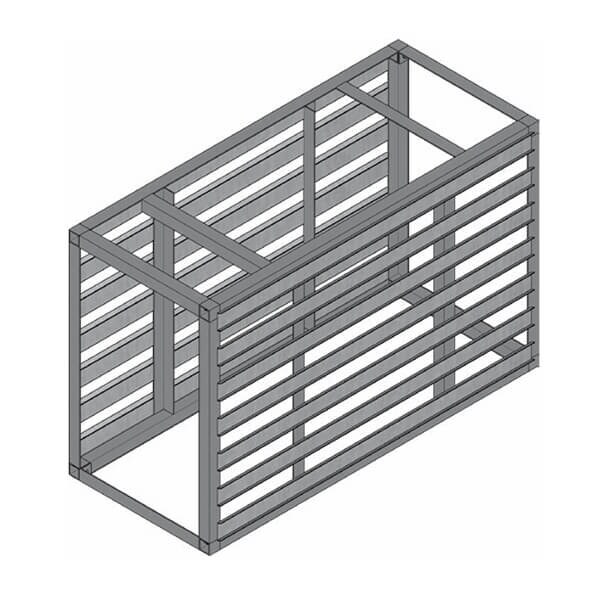

U-Cara Modular System Base Module U-BC 70 - Detailed Description

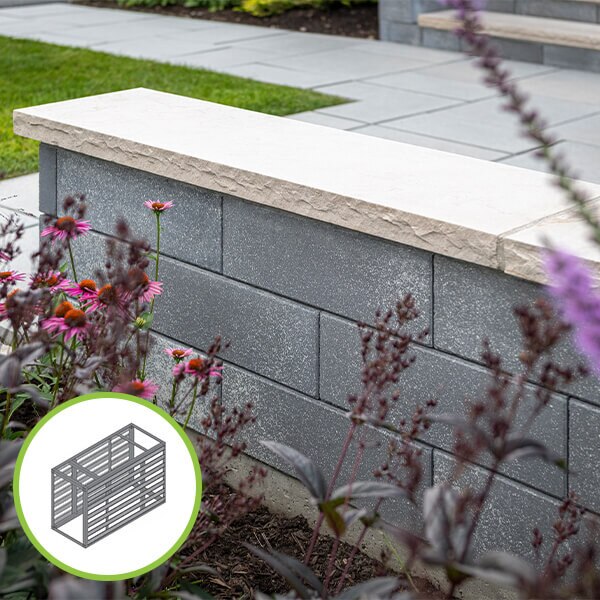

The Unilock U-Cara Module System Base Module revolutionizes the construction of outdoor living features with its innovative design and functionality. This aluminum framed module system is an integral part of the U-Cara System, designed specifically to streamline the building process for features like retaining walls, bars, and outdoor kitchens.
Thanks to these modules' lightweight and rust-free aluminum construction, two days of labour can now be efficiently completed in just a few hours. Their ease of handling makes them ideal for projects in locations with difficult access, significantly reducing the physical strain and logistical challenges associated with traditional construction materials.
The U-Cara Base Module is highly versatile.

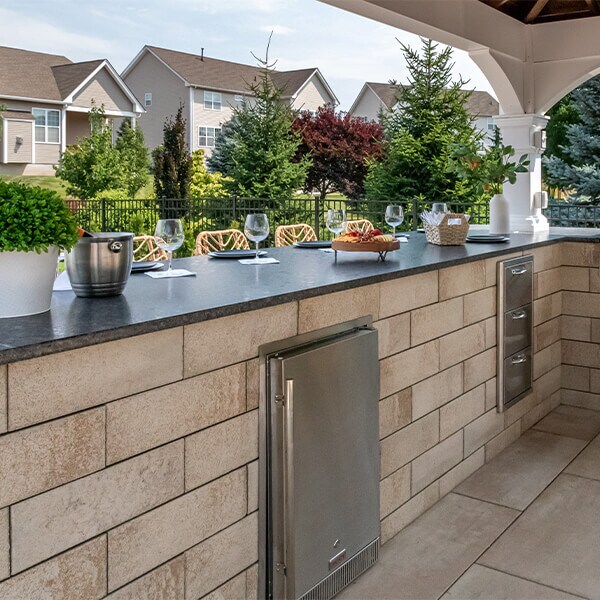

- Create a refrigerator cut-out of up to 25 inches for seamless appliance integration, enhancing the functionality of your outdoor kitchen.

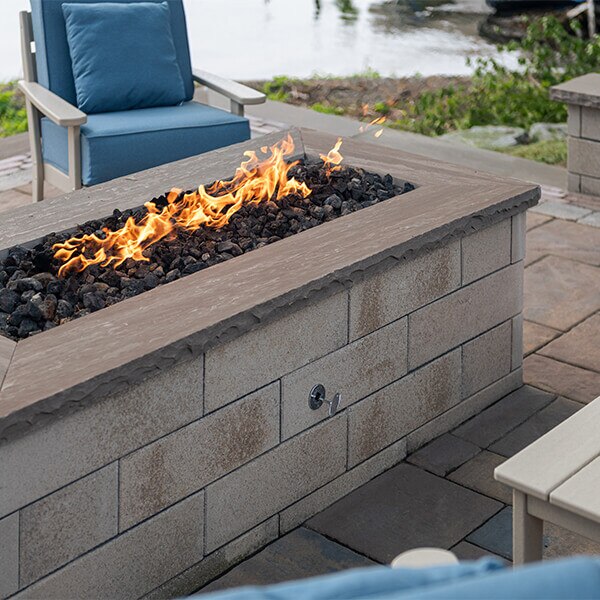

- Or, utilizing the adjustable rails, create a support for a fire pan, adding a cozy and inviting element to your outdoor gathering spaces.
Choose the Unilock U-Cara Module System Base Module for a durable, convenient, and time-saving solution that elevates the aesthetic and functional quality of any outdoor living area.
Applications:

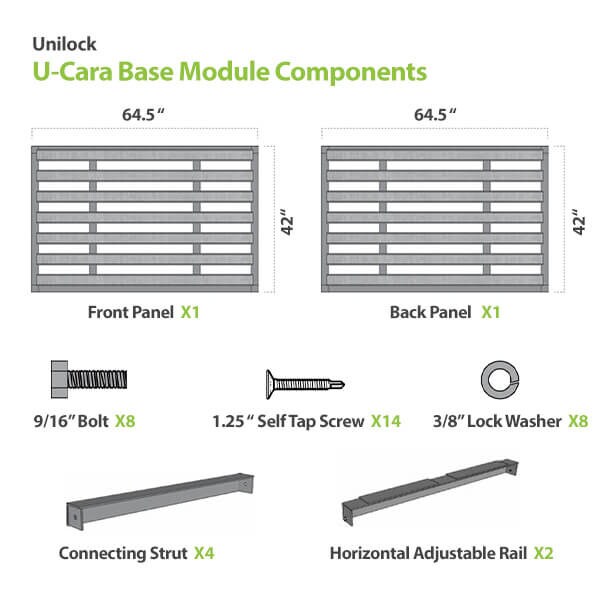

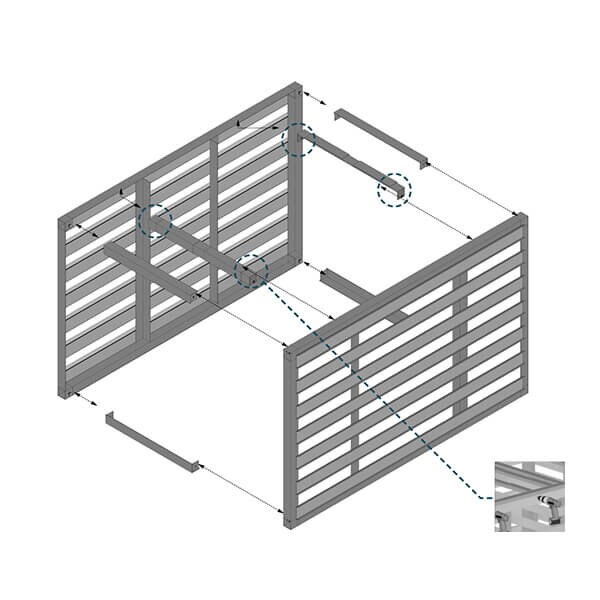

Unilock U-Cara Base Module includes:
| Base Module | ||
| component | quantity | part # |
| Front Panel | 1 | ULBCP |
| Back Panel | 1 | ULBCP |
| Connecting Strut | 4 | ULCS |
| Horizontal Adjustable Rail | 4 | ULHAR |
| 9/16" Bolt | 8 | B01 |
| 1 1/4" Self Tap Screw | 14 | ST02 |
| 3/8" Lock Washer | 8 | LW01 |
Dimensions:
- Frame: 32 1/2" X 69 1/2"
- With Panels: 27 1/2" X 64 1/2"
Weight:
- 59 lbs
