Unilock U-Cara Modular System Pillar Module
Details
Unilock U-Cara Modular System Pillar Module
The Unilock U-Cara Modular System Pillar Module is an integral component of the U-Cara System, specifically designed to enhance and simplify the construction of outdoor living features. This module is perfect for creating structural posts or building robust, stylish columns within your outdoor space.
Crafted from lightweight, rust-free aluminum, these framed cabinets are easy to transport and build, significantly reducing the labour and time required for such constructions. Thanks to the efficiency and simplicity of the U-Cara Modular System, a project that traditionally might take two days can now be completed in just a few hours.

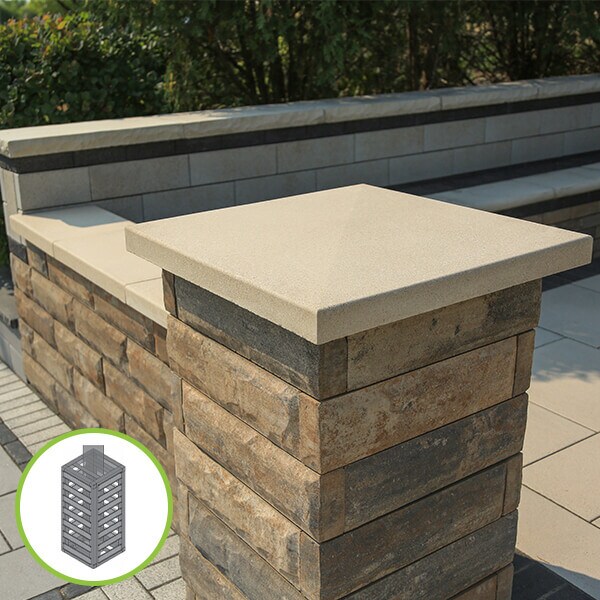

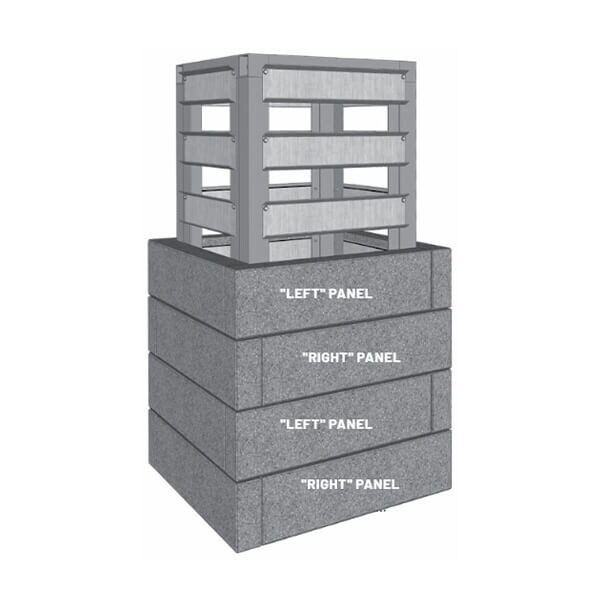

The Pillar Module is versatile enough to wrap around existing structural posts or construct new columns from scratch. For installations not involving a wrap-around, a 28'' x 28'' pillar cap is required to complete the column's aesthetic and structural integrity.
Choose the Unilock U-Cara Modular System Pillar Module for a seamless and efficient way to enhance the functionality and appeal of your outdoor living areas.
Applications:

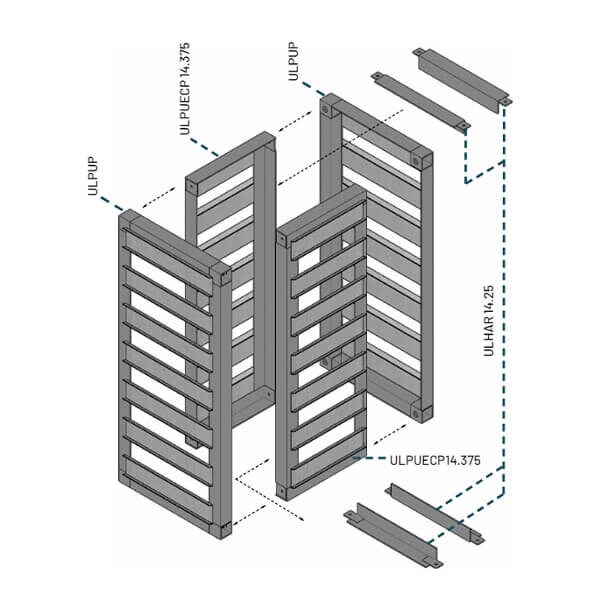

Unilock U-Cara Pillar Module includes:
| Pillar Module UL-PU | ||
| component | quantity | part # |
| End-Clad Panel | 2 | ULPUP |
| Corner Module Panel | 1 | ULPUECP14.375 |
| Connecting Strut | 4 | ULHAR14.25 |
| 9/16" Bolt | 8 | B01 |
| 1 1/4" Self Tap Screw | 14 | ST02 |
| 3/8" Lock Washer | 8 | LW01 |
Dimensions:
- Frame: 18 1/2" x 18 1/2"
- With Panels: 24" x 24"
