Permacon Grande Concrete Retaining Wall Details:
Van Beek's proudly introduces the Permacon Grande® Concrete Retaining Wall, a robust engineering and sophisticated design blend.

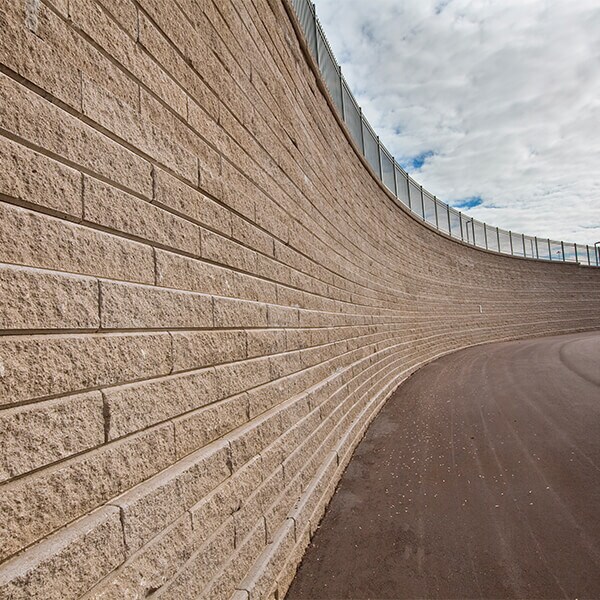

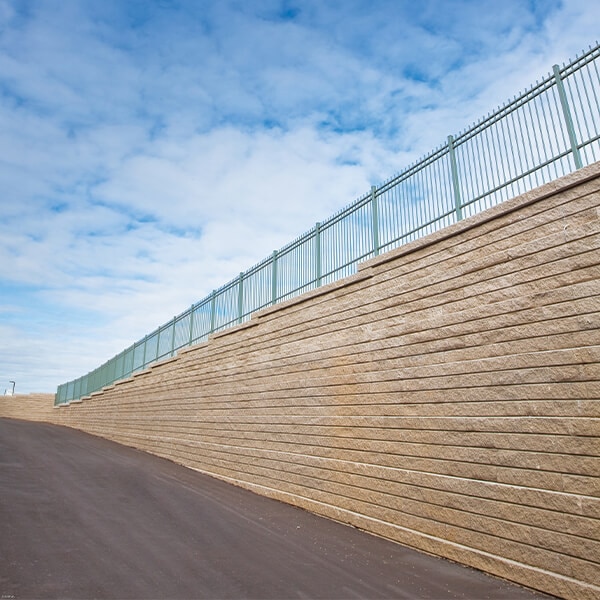

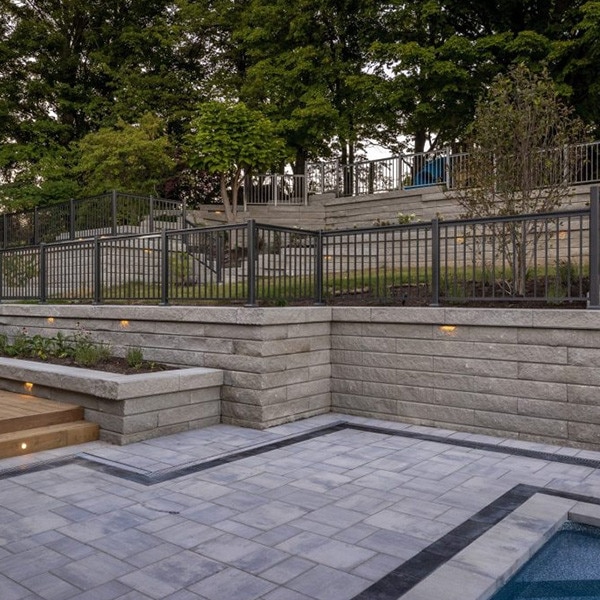

This cutting-edge design reinforces the wall's structural integrity and imparts an unmatched flexibility in its application. From constructing towering retaining walls that command presence to designing walls that need to adapt to the unique challenges of a sloped landscape, the Grande® system accommodates it all with ease.
This system demonstrates its versatility in situations requiring a wall with vertical setbacks, effortlessly adapting to varied design needs. Furthermore, the Grande® wall elegantly conforms to the landscape for uneven or sloped terrains, ensuring aesthetic appeal and functional utility.
The Grande® wall system is designed to be self-supporting. It can be reinforced with geogrid solutions for more demanding applications, providing additional strength and resilience. This feature makes it ideal for various projects, from residential landscaping to large-scale commercial developments.
The Permacon Grande® Concrete Retaining Wall, available at Van Beek's, is more than just a retaining wall—it's a versatile solution that combines durability, beauty, and innovation.
| Available Colours: Permacon Grande Concrete Retaining Wall is available in the following colours: |
 |
| Applications: Permacon Grande Concrete Retaining Wall is ideal for the following applications:  |
Contact Van Beek’s Landscape Supply today to discover why we are recognized as the Greater Toronto Area’s (GTA) leading supplier of Permacon Grande Wall.
All concrete and natural stone products are sold in one of the following ways. Reference the product description to find which purchase unit applies to that product. For more information on the sale and delivery of our products, see our Frequently Asked Questions or contact our store at (905) 842-5053.
Sold by Bundle
When an item is sold by bundle, you are buying the entire skid.
Sold by Layer
When an item is sold by layer, you are buying a single layer of the product on the skid.
Sold by Unit
When an item is sold by unit, you are buying a single piece of the product.
Product Specifications
Dimensions

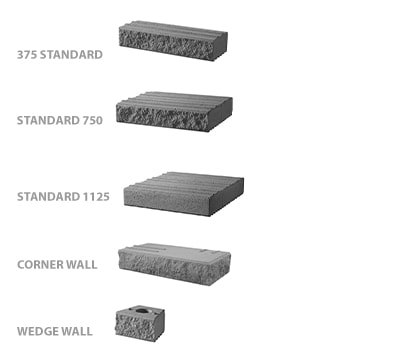

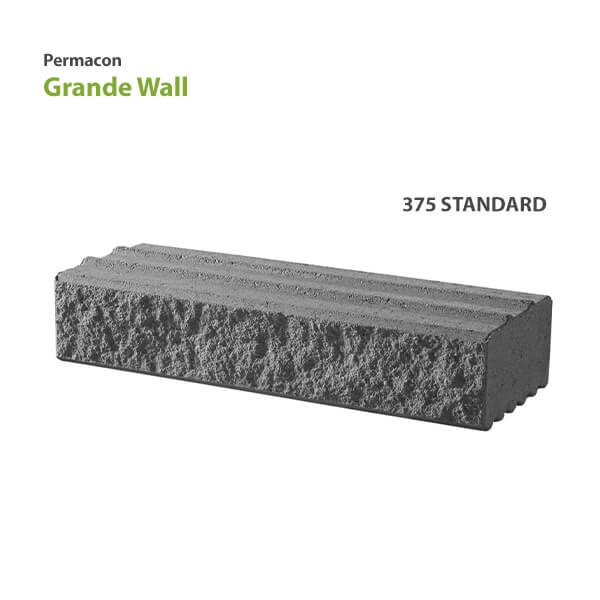

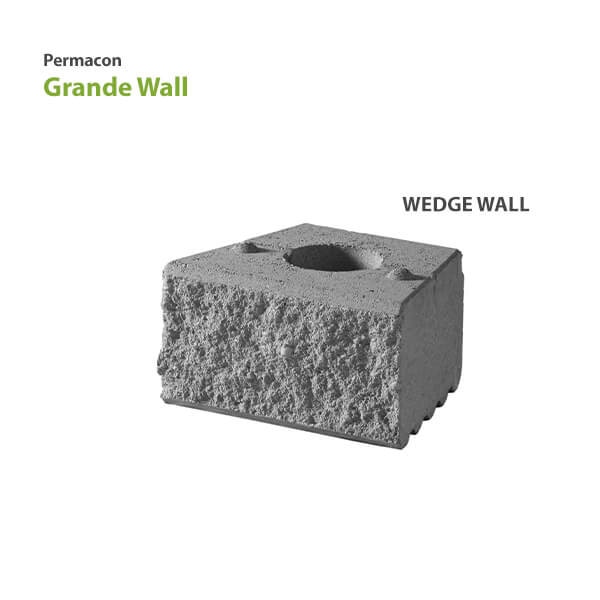

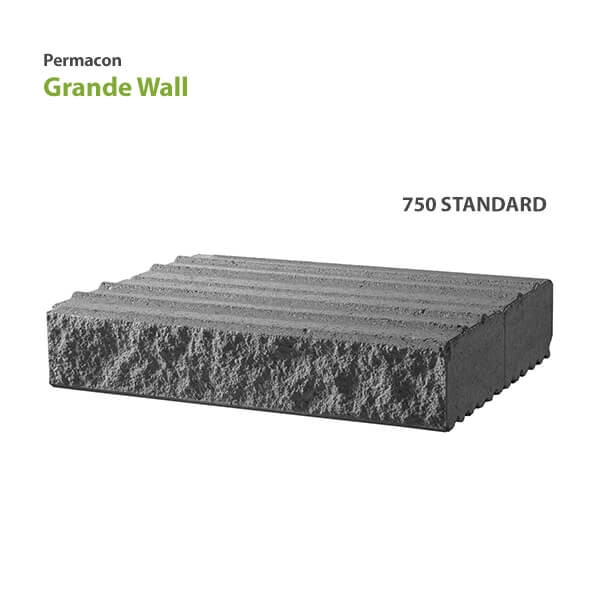

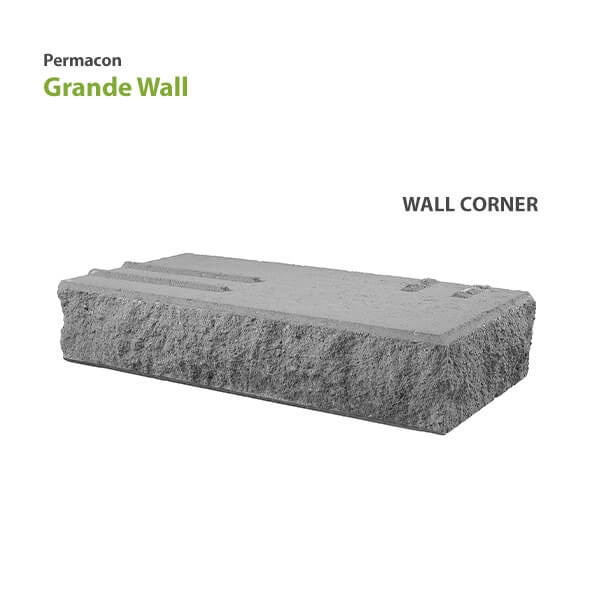

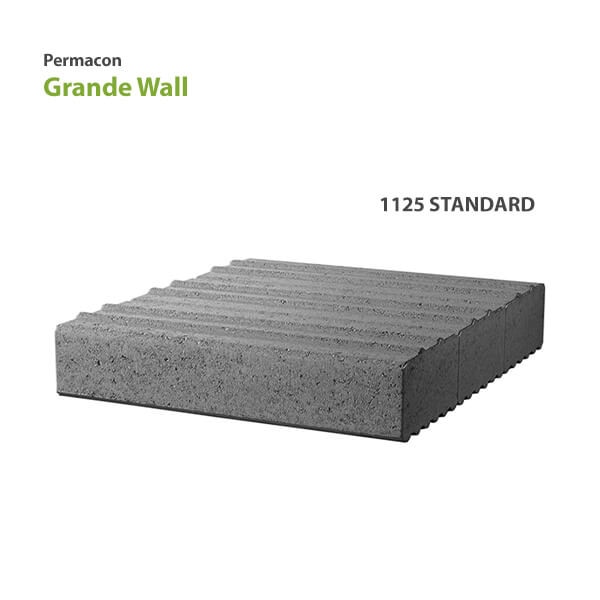

| 375 Standard | 750 Standard | 1125 Standard | Wall Corner | Wedge Wall | |
|---|---|---|---|---|---|
| Unit A | 7.875" x 14.75" x 39.375" | 7.875" x 29.5" x 39.375" | 7.875" x 44.31" x 39.375 | 7.875" x 19.69" x 39.375" | 7.875" x 12.31" x 14.94/9.975" |

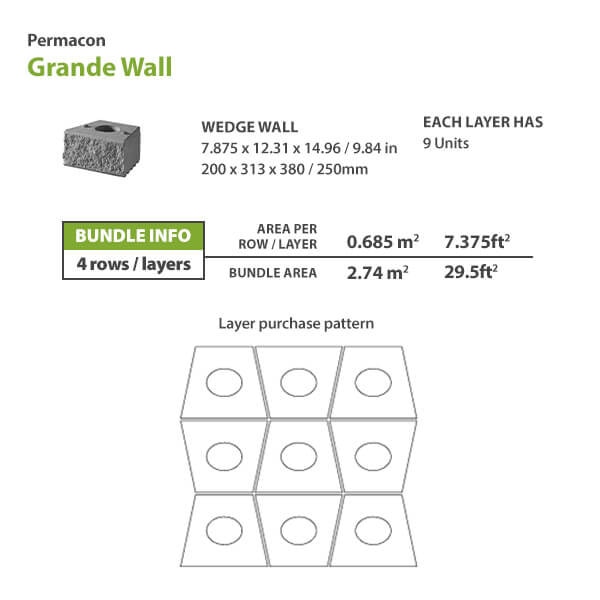

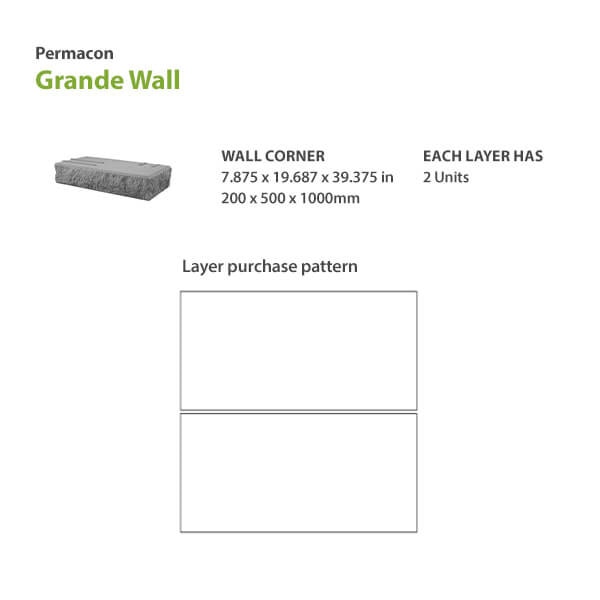

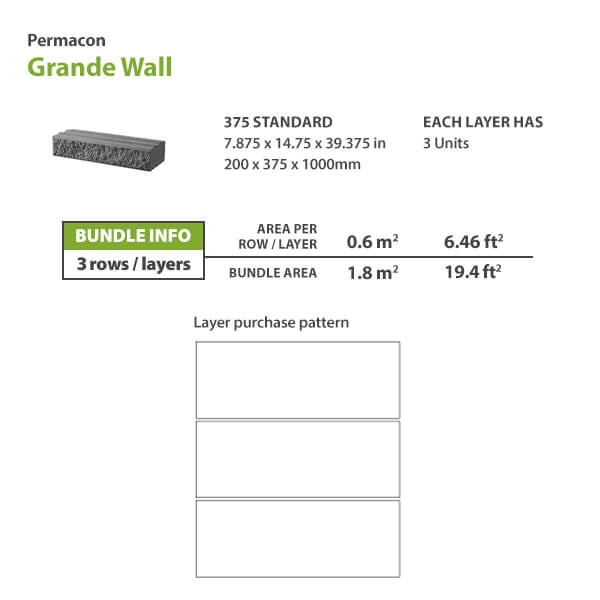

Bundle Info
| 375 Standard | 750 Standard | 1125 Standard | Wall Corner | Wedge Wall | |
|---|---|---|---|---|---|
| Face Feet per Bundle | 19.56 ft² | 8.7 ft² | 6.45 ft² | - | 29.5 ft² |
| Face Feet per Layer | 6.52 ft² | 2.15 ft² | 2.15 ft² | - | 7.37 ft² |
| Face Feet per Piece | 2.17 ft² | 2.15 ft² | 2.15 ft² | - | 0.82 ft² |
| Pieces per Bundle | 9 | 4 | 3 | 6 | 36 |
| Layers per Bundle | 3 | 4 | 3 | 3 | 4 |
| Weight per Bundle | 3300 lbs | 2970 lbs | 3190 lbs | 2811 lbs | 2978 lbs |
| Weight per Layer | 1100 lbs | 726 lbs | 1065 lbs | 937 lbs | 744.5 lbs |
| Weight per Piece | 360 lbs | 726 lbs | 1065 lbs | 469 lbs | 83 lbs |
